Data-Mate

Data-Mate

IPLC Programmer

Configure, report and program.

The optional IPLC Data-Mate is a companion hand-held device designed to transfer information between IPLC units and your Windows-based computer. The proprietary software allows you to change factory settings as well as customize individual or all of your IPLC outlets and print reports to show the power savings.

$358.99
Quantity
Shipping

Shipping is calculated at checkout.

Returns

30 day return policy, see Refund Policy.

Model
Model IPLC Data-Mate Model: DM4

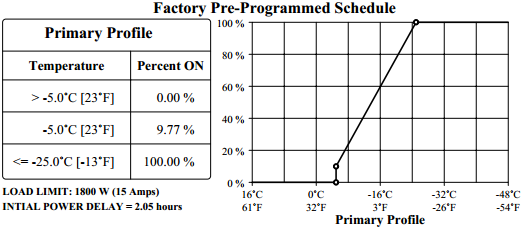

Pre-Programmed Schedule
Schedule M210-15
Initial Power Delay 2.05 Hours
Load Limit Up to 1,800 Watts (15 Amps)
Specifications
Model IPLC Data-Mate Model: DM4
Software Requirements
Operating System Windows® 98, Windows® XP, Windows® 7, Windows® 8 and Windows® 10. Works with 32 or 64 bit operating systems
RAM 8 MB
Available Space 4 MB
Ports 2x USB Ports
Input Devices Keyboard and Mouse
Video Card Minimum 640 x 480 VGA compatible
Printer Graphics capable printer with Windows driver
Specifications
Exterior Polyethylene Plastic
Indicator Lights 2x Green and 2x Red LEDs
CPU Access Port IR (Infrared)
Physical Information
Width 1.75 inches
Height 1 inch
Depth 5 inches
Weight 0.25 lbs
Packaging Details
Box Width 12 inches
Box Height 3 inch
Box Depth 9 inches
Box Weight 1 lb
What's in the Box
Product IPLC Data-Mate Model: DM4
Connection Cable Personal Computer Serial Cable
Power Source Alkaline 9V Battery
USB Flash Drive Windows Software, PDF Technical Documents, Manuals and Videos
Warranty
Term 3 Years
Coverage Materials and Workmanship
Software Updates Free Product Lifetime
